INMOBILE WHEEL WASH
SERIE 400 MA, 700 MA

Inmobile wheel washers that can be used on a solid base. It is used to remove medium to heavy dirt.

PRODUCT PARAMETERS

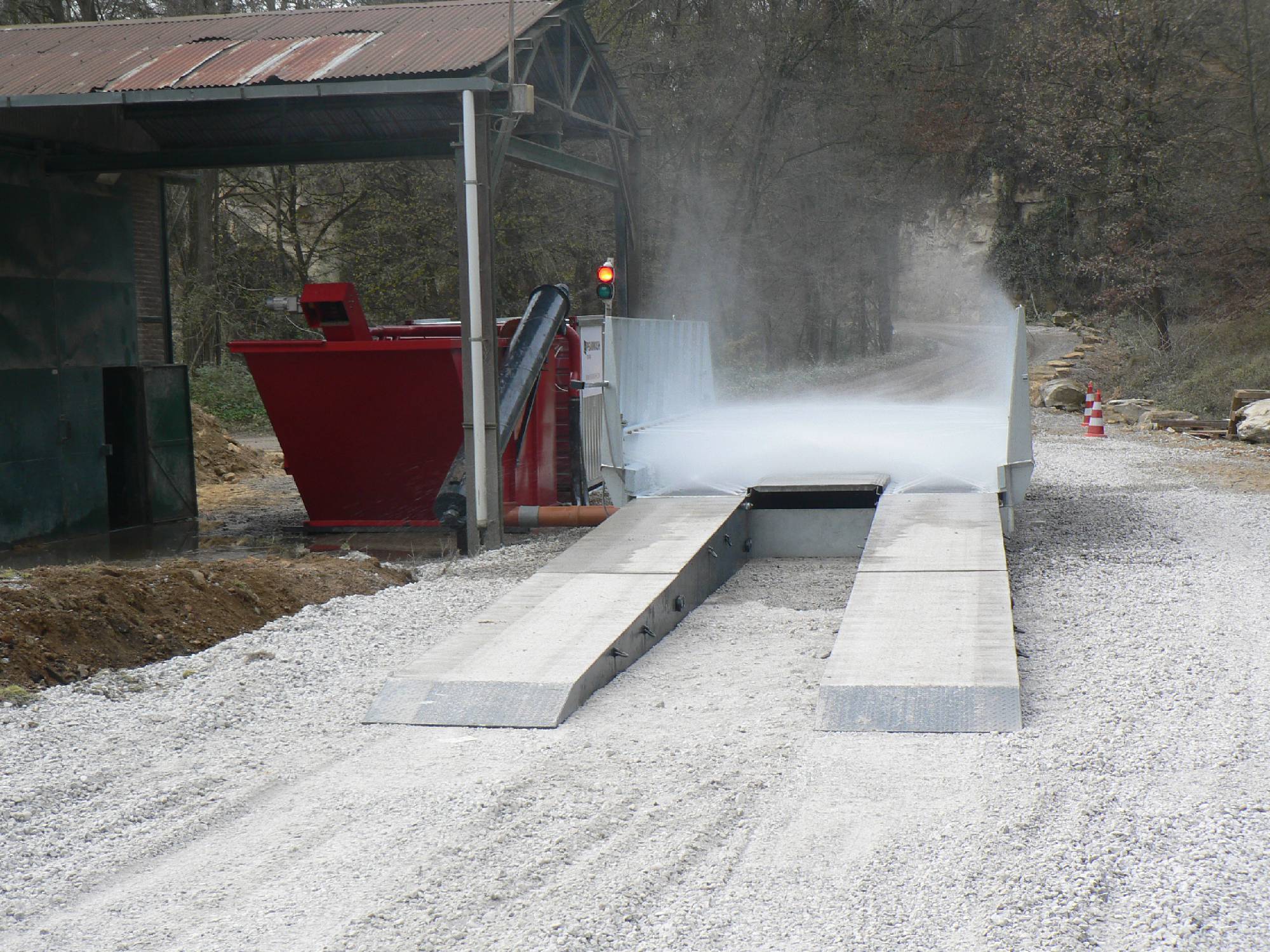

PEAKWASH 400 MA, 700 MA can be used in all situations where in-ground digging is inappropriate or prohibited. The wash systems are designed to remove medium to heavy dirt and mud deposits from vehicle tires. A series containing two models differing in size, capacity and horsepower. A larger sedimentation tank speeds up the sedimentation process, allowing for a higher capacity of the washing system, and savings in sedimentation agent costs. A longer wash frame allowing multiple washing of a standard tire or washing of larger tire size.

Wash systems are suitable for long term usage at construction sites, quarries, dump sites, recycling sites, mines, industrial sites and gerbils. The wash systems include a wash frame, sidewalls, settling pumping tank with an integrated sludge conveyor, water tank, and entry ramps and exit ramps. The wash systems allow for one to two tire rotation during the wash cycle and have a maximum performance of up to 60 vehicles per hour (depending on the model). Two width of entry 2.75 a 3.00 m.


Function

PEAKWASH 400 MA, 700 MA can be used in all situations where in-ground digging is inappropriate or prohibited. The wash systems are designed to remove medium to heavy dirt and mud deposits from vehicle tires. A series containing two models differing in size, capacity and horsepower. A larger sedimentation tank speeds up the sedimentation process, allowing for a higher capacity of the washing system, and savings in sedimentation agent costs. A longer wash frame allowing multiple washing of a standard tire or washing of larger tire size.

Wash systems are suitable for long term usage at construction sites, quarries, dump sites, recycling sites, mines, industrial sites and gerbils. The wash systems include a wash frame, sidewalls, settling pumping tank with an integrated sludge conveyor, water tank, and entry ramps and exit ramps. The wash systems allow for one to two tire rotation during the wash cycle and have a maximum performance of up to 60 vehicles per hour (depending on the model). Two width of entry 2.75 a 3.00 m.



Service

The PEAKWASH series MA is fully automatically controlled. The operator only regularly checks the nozzles, the conveyor, the water replenishment in the tank and the condition of the sedimentation agent, and checks or removes deposits from the pumping tank. The delivery technician instructs the operator and checks the wash system during commissioning and handover.




Preparation of installation

The customer is responsible for preparing a paved area in accordance with PEAKWASH documentation, along with a supply of water and electric current before installation.


Warranty

The manufacturer guarantees a standard warranty of 24 months valid from the date of installation, and support in the delivery of spare parts and service.


Available accessories

  • Increasing capacity by adding nozzles and pumps
  • Sedimentation agent in 25 kg / 120 kg / 1,000 kg pack
  • Oil separator
  • Increased capacity by increasing the settling tank up to 30m3
  • Equipment for winter season
  • Frost-resistant container for sedimentation agent placement
  • Frost-resistant barrel for sedimentation agent placement
  • „Flipper” work shoes cleaner

TECHNICAL PARAMETERS

Maximum number of vehicles per hour:
Passing width (in the direction of travel):
Overall width (in the direction of travel):
Working length (in the direction of travel):
Overall length (in the direction of travel):
Depth in field:
Height of sidewalls:
Total weight:
Electric power:
Tank Volume:
Water consumption per cycle:
Number of pumps:
Maximum pump power:
* Compliant with water recycling

400 MA

40 vehicles per hour *
2 750 mm / 3 000 mm
7 000 mm
3 800 mm (1 x turn of wheels)
14 000 mm
1 500 mm
1 500 mm
13.3 t
22.5 kw
12 m3
approximately 40 l
4 pieces
3 200 l/min.

700 MA

60 vehicles per hour *
2 750 mm / 3 000 mm
7 000 mm
6 500 mm (2 x turn of wheels)
16 700 mm
1 500 mm
1 500 mm
14.8 t
33.5 kw
17 m3
approximately 50 l
6 pieces
4 800 l/min.

ASK FOR CUSTOM-MADE SOLUTION

Do you need a special dimension? Dosage of disinfection? Frost resistance
or are you interested in water savings? Every wheel washer for trucks
and heavy machines can be tailored to suit your needs.
