MOBILE WHEEL WASH
PEAKWASH EASY

Powerful, compact, low-cost wheel wash systems suitable for medium vehicle tire pollution.

PRODUCT PARAMETERS

PEAKWASH EASY S, M, L are powerful, compact, low-cost wash systems for removing mild to moderate dirt and mud from the vehicle tires. A series containing three models differing in size, capacity and horsepower. A larger sedimentation tank speeds up the sedimentation process, allowing for a higher capacity of the washing system, and savings in sedimentation agent costs.

Wash systems are suitable for short and long term usage at construction sites, quarries, dump sites, recycling sites, mines, industrial sites and gerbils. The wash systems include a wash frame, a settling water tank with an integrated conveyor for automatic sludge removal. The wash systems allow for one-time tire rotation during the wash cycle and have a maximum performance of up to 60 vehicles per hour (depending on the model).

Simple and fast installation of these wash systems makes them particularly suitable for short-term usage.


Function

Wheels are fully cleaned along the frame of the wash system as the Vehicle passes slowly. The wash cycle is automatic, and is controlled by optical or magnetic sensors. The length of the cycle is set by a timer. The specially developed PEAKWASH nozzle system consists of nozzles on the main frame in order to create an efficient water shower to wash the tread pattern, and the outer and inner side of the tire. The main wash frame has an integrated grille along its entire length to shake the tires and open the tread upon entry to increases the washing efficiency.

Impurities and sludge flowing from the tires into the settling tank are automatically removed by a conveyor. Water circulates back to be reused in the washing system and the water level in the tank is automatically replenished by the float valve.

Sedimentation agent accelerates and optimizes the process of depositing impurities at the bottom of the tank. PEAKWASH washers contain a sedimentation agent included in the price without any extra costs.


Service

The PEAKWASH EASY series is automatically fully controlled. The operator only regularly checks the nozzles, the conveyor, the water supply to the tank and the supply of the sedimentation agent. The delivery technician instructs the operator and checks the wash system during commissioning and handover.

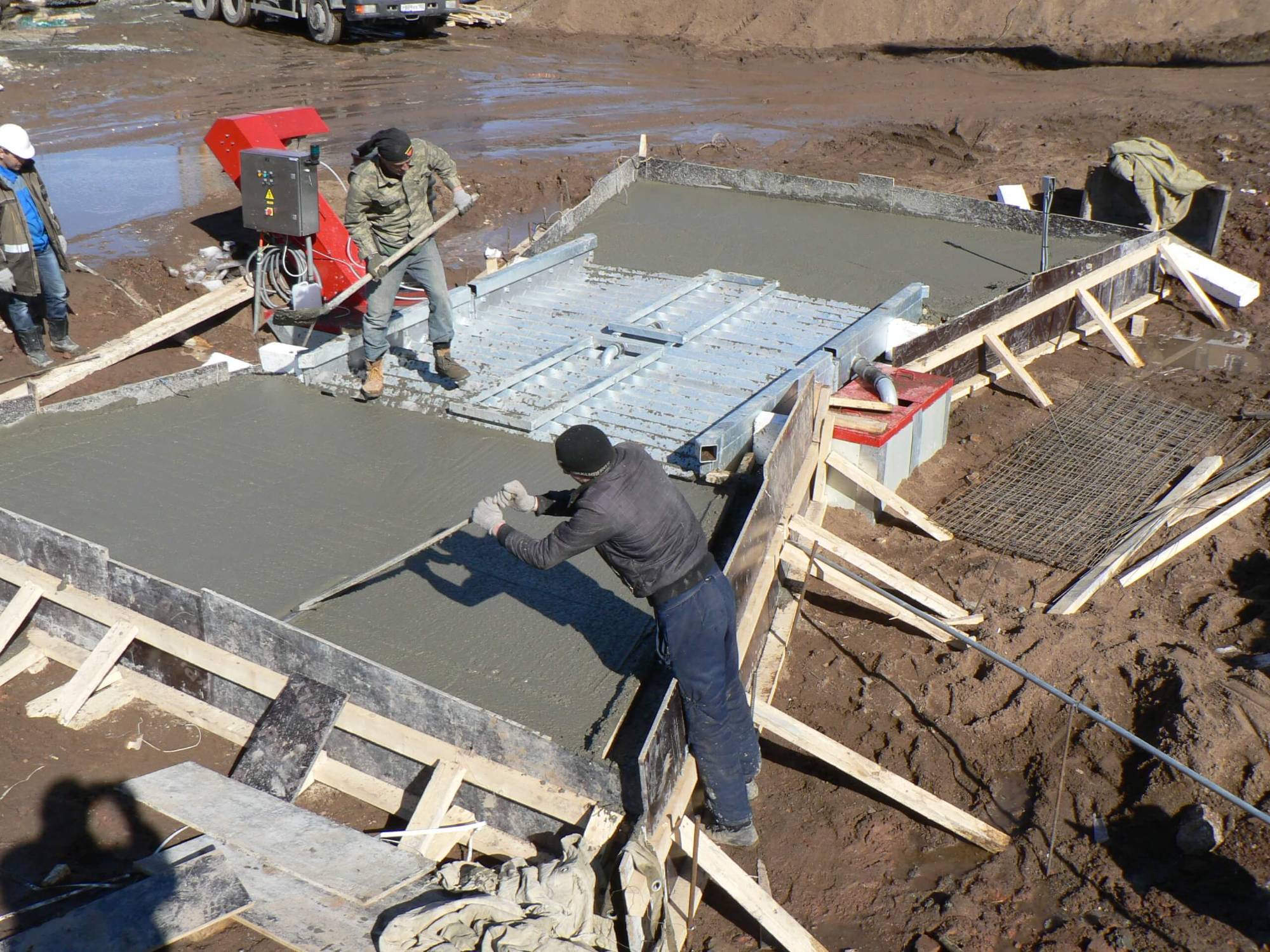

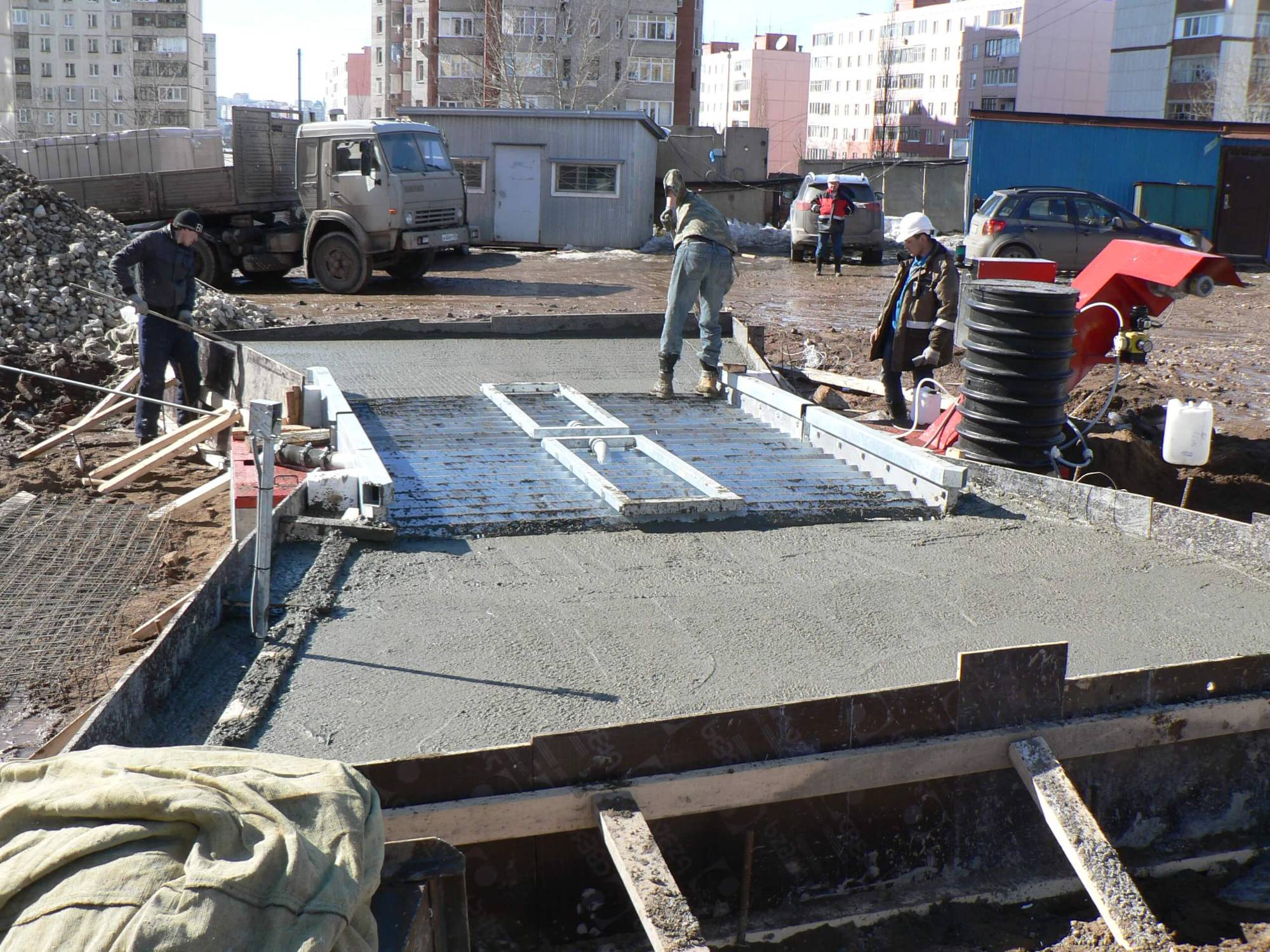

Preparation of installation

The customer is responsible for building the foundation in accordance with PEAKWASH documentation, along with the water and electricity supply before installation. The customer is also responsible for dusting around the washing system and for preparing entry and exit routes after installation.


Warranty

The manufacturer guarantees a standard warranty of 24 months valid from the date of installation, and support in the delivery of spare parts and service.


Available accessories

  • Sedimentation agent in 25 kg / 120 kg / 1,000 kg pack
  • Oil separator
  • Equipment for winter season
  • Frost-resistant container for sedimentation agent placement
  • Frost-resistant barrel for sedimentation agent placement
  • „Flipper” work shoes cleaner

TECHNICAL PARAMETERS

Maximum number of vehicles per hour:
Passing width (in the direction of travel):
Overall width (in the direction of travel):
Working length (in the direction of travel):
Overall length (in the direction of travel):
Depth in field:
Total weight:
Electric power:
Tank Volume:
Water consumption per cycle:
Number of pumps:
Maximum pump power:

PEAKWASH EASY S

40 vehicles per hour
2 750 mm
6 050 mm
3 500 mm (1 x turn of wheels)
3 650 mm
1 350 mm
3.5 t
6 kw
4.8 m3
approximately 30 l
1 piece
1 600 l/min

PEAKWASH EASY M

50 vehicles per hour
2 750 mm
6 150 mm
3 500 mm (1 x turn of wheels)
3 650 mm
1 600 mm
4.0 t
11.5 kw
7.5 m3
approximately 40 l
2 pieces
3 200 l/min

PEAKWASH EASY L

60 vehicles per hour
2 750 mm
6 550 mm
3 500 mm (1 x turn of wheels)
3 650 mm
1 850 mm
4 4 t
17.0 kw
11.5 m3
approximately 50 l
3 pieces
4 800 l/min

ASK FOR CUSTOM-MADE SOLUTION

Do you need a special dimension? Dosage of disinfection? Frost resistance
or are you interested in water savings? Every wheel washer for trucks
and heavy machines can be tailored to suit your needs.
