INMOBILE WHEEL WASH
PEAKWASH 400 B, 700 B, 1000 B

Wheel wash systems PEAKWASH 700A are inmobile wheel washers for removing medium dirt and mud from vehicle tires. Wheel washers allow 2 times tire rotation during the wash cycle and have a maximum performance of up to 50 vehicles per hour.

PRODUCT PARAMETERS

PEAKWASH 400 B, 700 B, 1000 B are the most powerful in our basic range. The wash systems are designed to remove medium to heavy dirt and mud deposits from vehicle tires. A series containing three models differing in size, capacity and horsepower. A larger sedimentation tank speeds up the sedimentation process, allowing for a higher capacity of the washing system, and savings in sedimentation agent costs. A longer wash frame allowing multiple washing of a standard tire or washing of larger tire size.

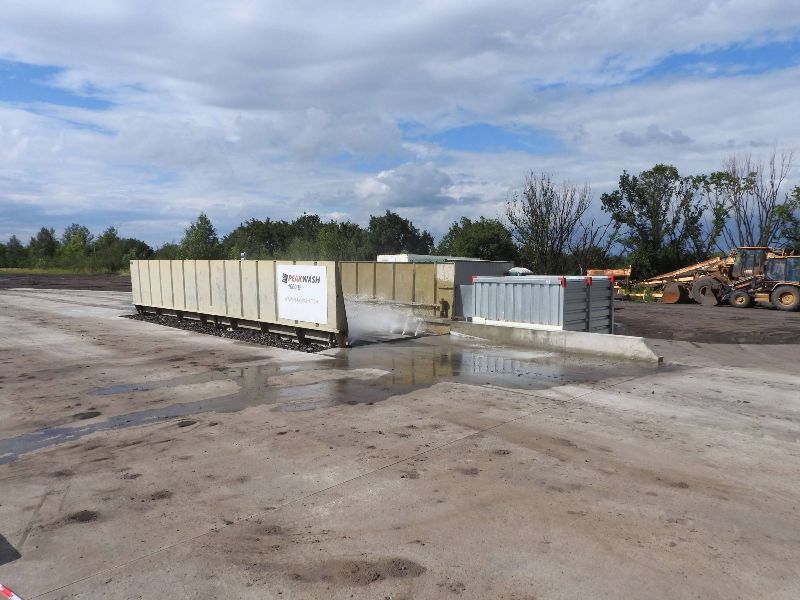

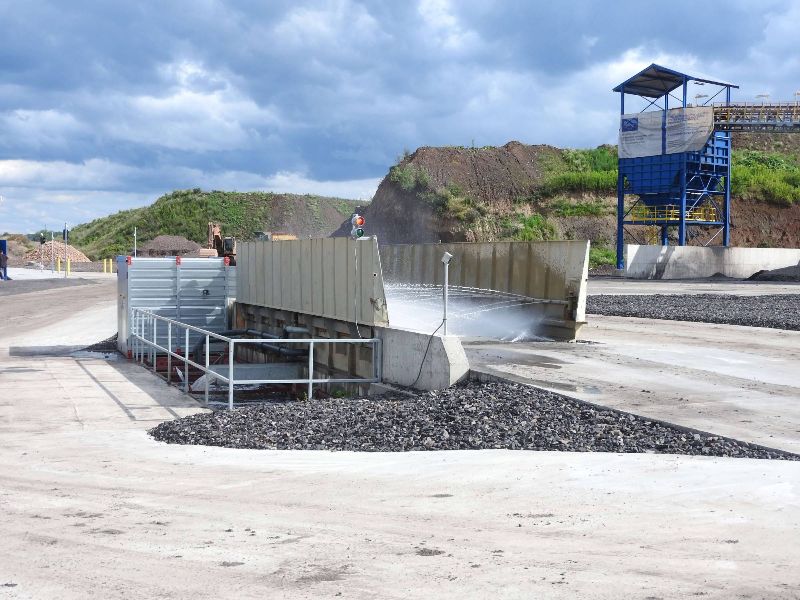

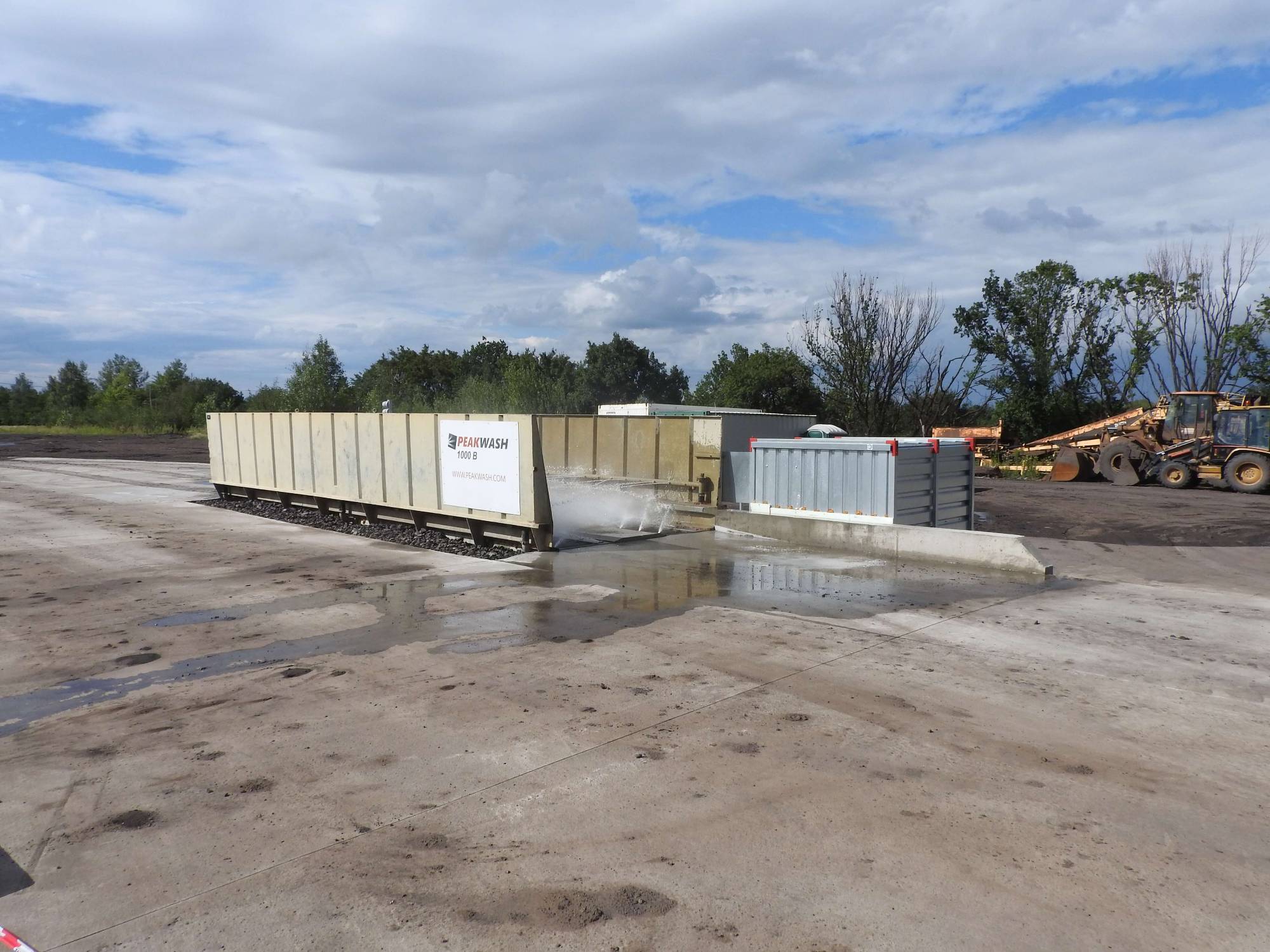

Wash systems are suitable for long term usage at construction sites, quarries, dump sites, recycling sites, mines, industrial sites and gerbils. The wash systems include a wash frame, sidewalls, settling water tank with an integrated sludge conveyor for automatic sludge removal, safety railing and access ladder. The wash systems allow one to three times tire rotation during the wash cycle and have a maximum performance of up to 90 vehicles per hour (depending on the model). Two width of entry 2.75 a 3.00 m.


Function

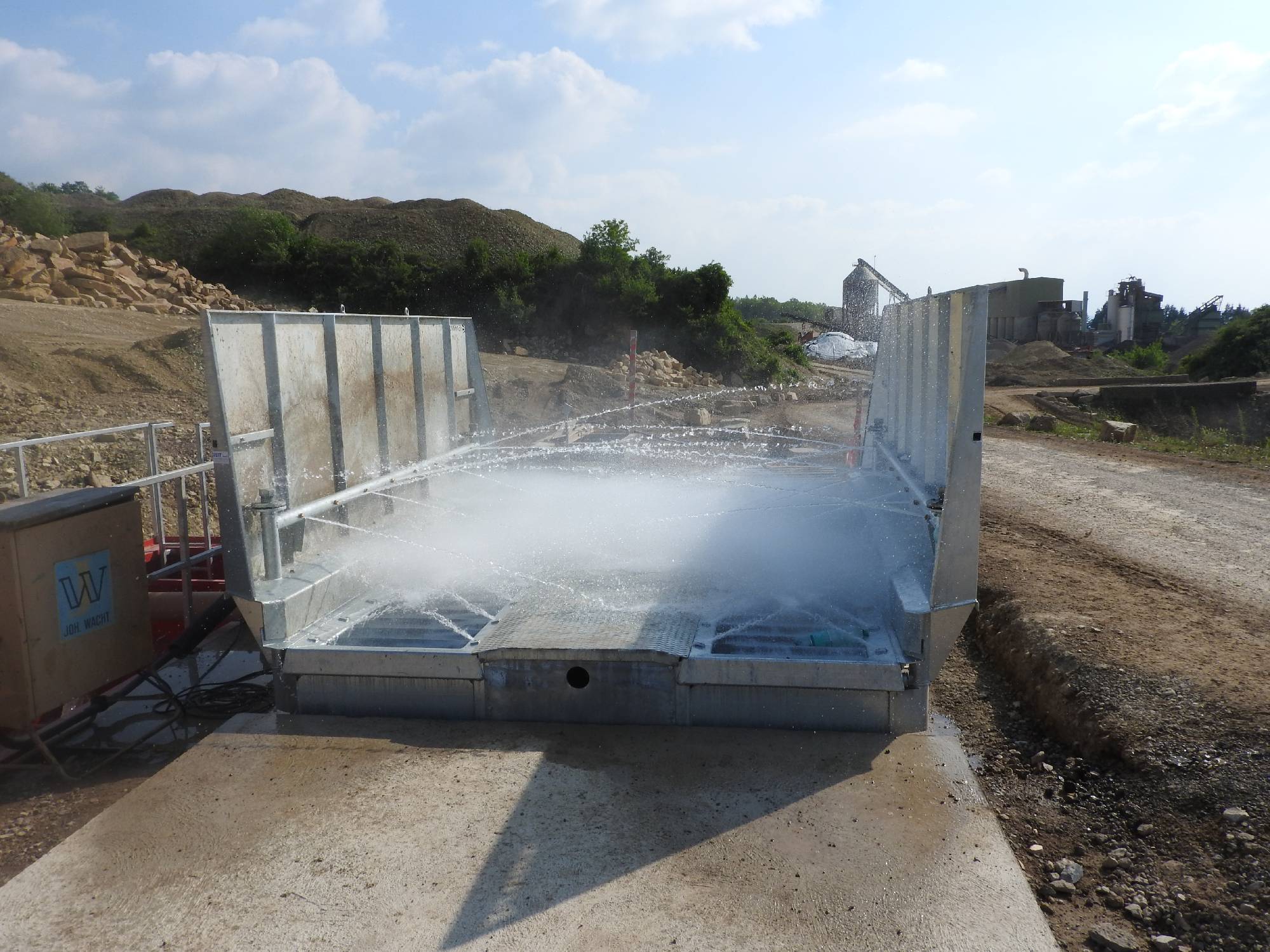

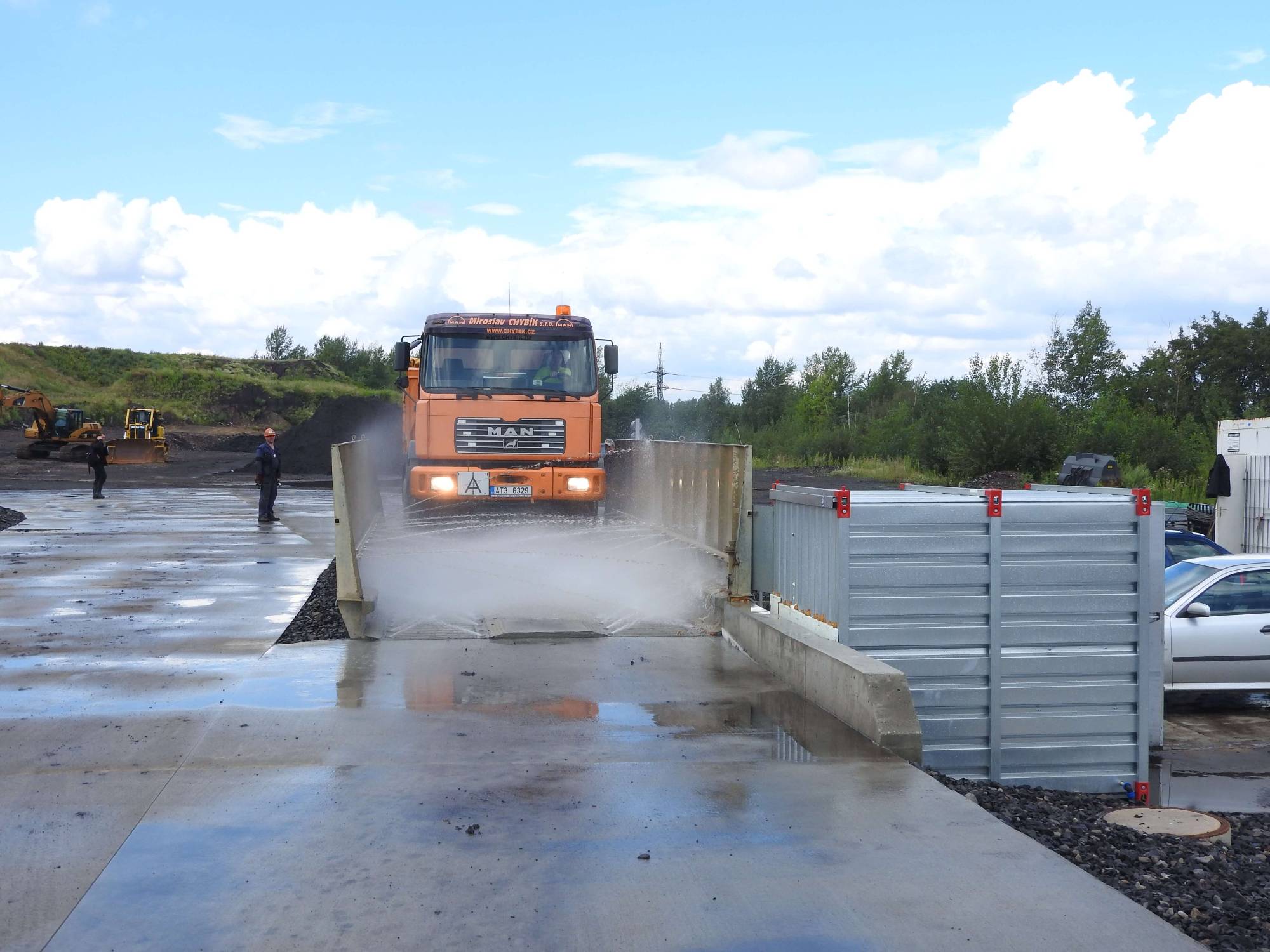

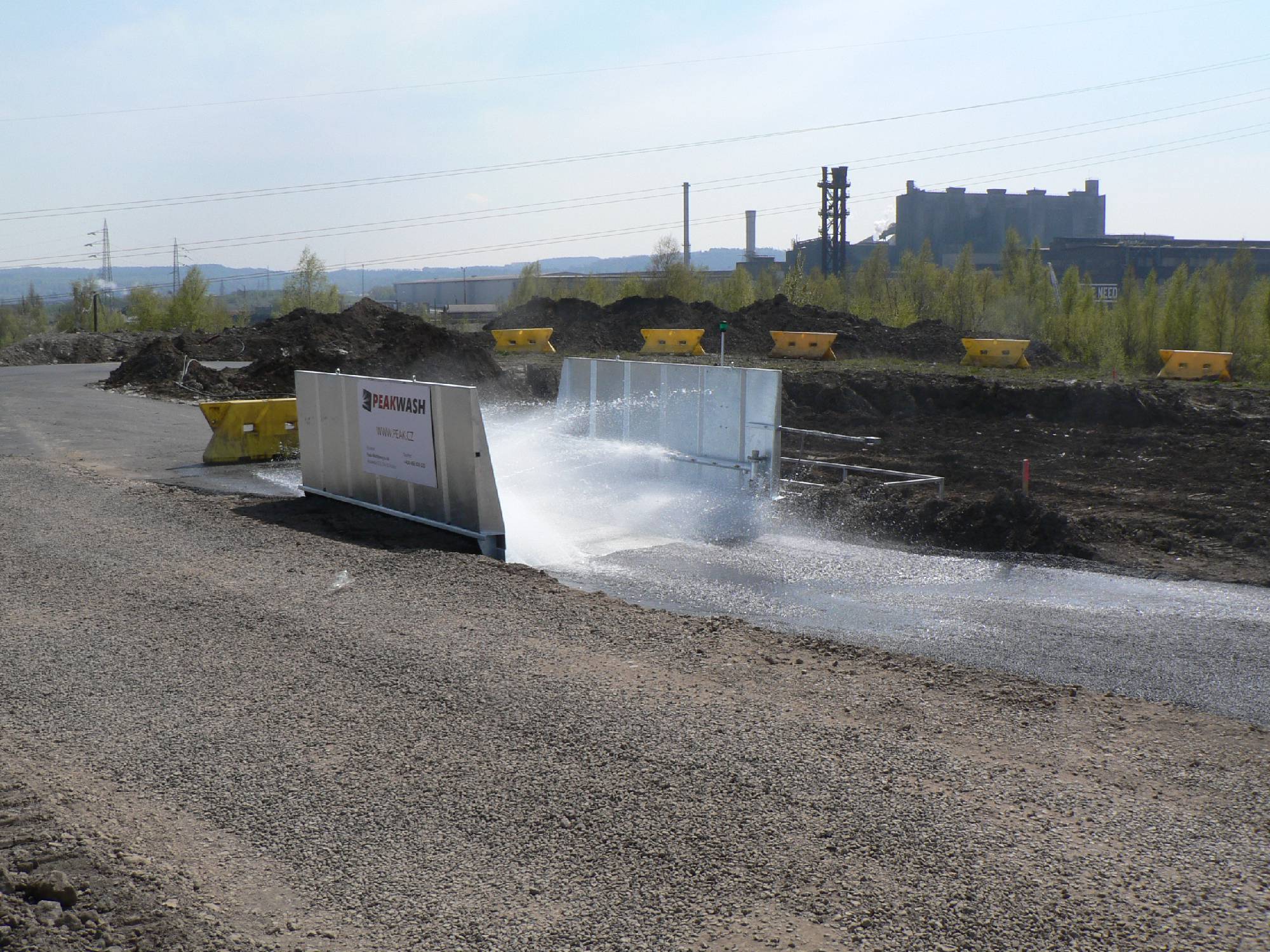

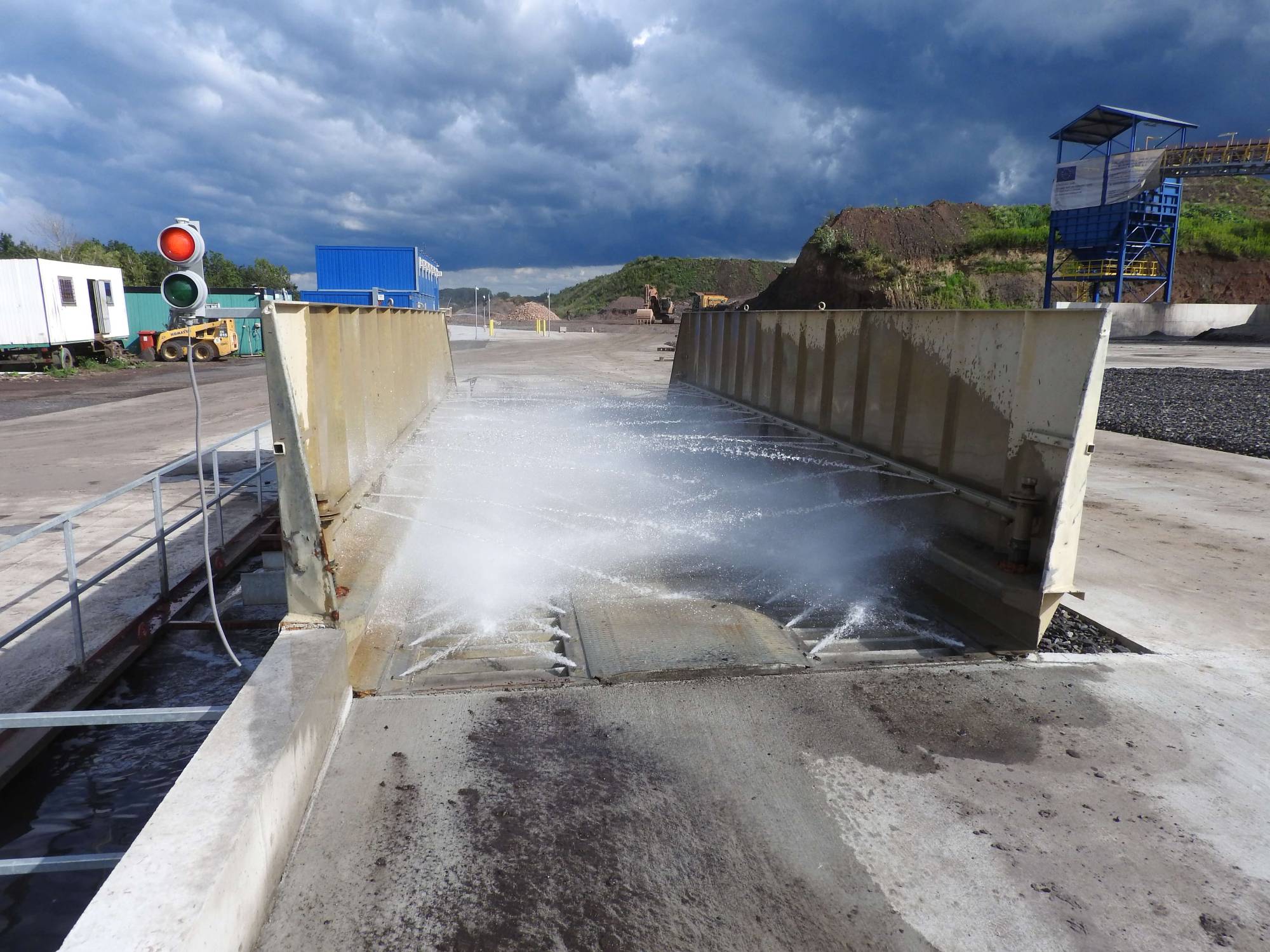

Wheels are fully cleaned along the frame of the wash system as the Vehicle passes slowly. The wash cycle is automatic, and is controlled by optical or magnetic sensors. The length of the cycle is set by a timer. The specially developed PEAKWASH nozzle system consists of nozzles on the main frame and side nozzles on the sidewalls in order to create an efficient water shower to wash the tread pattern, and the outer and inner side of the tire. The direction of the side nozzle stream is adjustable to optimize the washing effect. The main wash frame has an integrated grille along its entire length to shake the tires and open the tread upon entry to increases the washing efficiency.

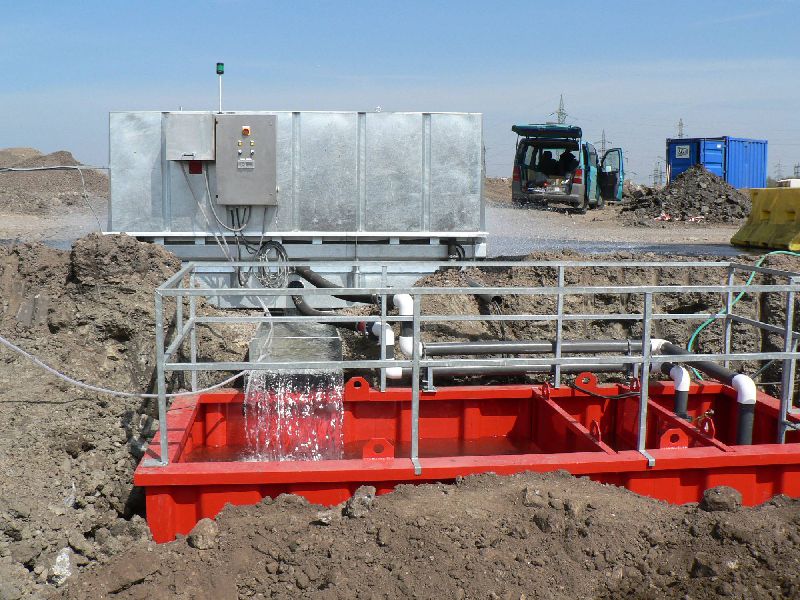

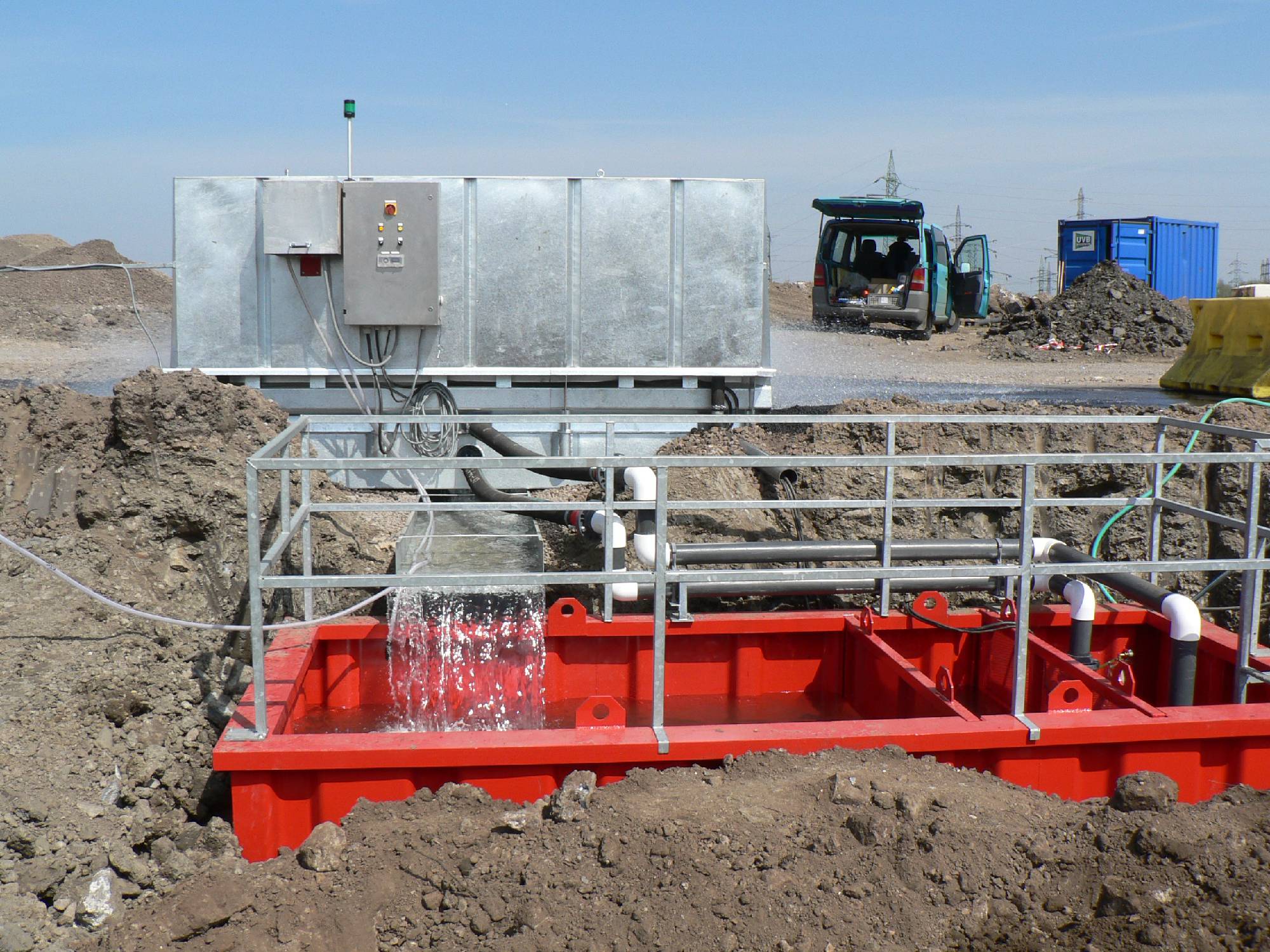

Impurities and sludge flowing from the tires into the settling tank should be regularly removed mechanically or by vacuum trucks. Water circulates back to be reused in the washing system and the water level in the tank is automatically replenished by the float valve.

Sedimentation agent accelerates and optimizes the process of depositing impurities at the bottom of the tank. PEAKWASH washers contain a sedimentation agent included in the price without any extra costs.



Service

The PEAKWASH series B is automatically fully controlled. The operator only regularly checks the nozzles, the conveyor, the water supply to the tank and the supply of the sedimentation agent and removes sludge and sediment from the settling tank the delivery technician instructs the operator and checks the wash system during commissioning and handover.






Preparation of installation

The customer is responsible for building the foundation in accordance with PEAKWASH documentation, along with the water and electricity supply before installation. The customer is also responsible for dusting around the washing system and for preparing entry and exit routes after installation.


Warranty

The manufacturer guarantees a standard warranty of 24 months valid from the date of installation, and support in the delivery of spare parts and service.


Available accessories

  • Increasing capacity by adding nozzles and pumps
  • Sedimentation agent in 25 kg / 120 kg / 1,000 kg pack
  • Oil separator
  • Increased capacity by increasing the settling tank up to 80m3
  • Frost-resistant container for sedimentation agent placement
  • Frost-resistant barrel for sedimentation agent placement
  • „Flipper” work shoes cleaner

TECHNICAL PARAMETERS

Maximum number of vehicles per hour:
Passing width (in the direction of travel):
Overall width (in the direction of travel):
Working length (in the direction of travel):
Overall length (in the direction of travel):
Depth in field:
Height of sidewalls:
Total weight:
Electric power:
Tank Volume:
Water consumption per cycle:
Number of pumps:
Maximum pump power:
* Compliant with water recycling

PEAKWASH 400 B

50 vehicles per hour *
2 750 mm / 3 000 mm
7 000 mm
3 800 mm (1 x turn of wheels)
5 000 mm
2 500 mm
1 500 mm
4.8 t
11.0 kw
20 m3
approximately 20 l
2 pieces
3 200 l/min.

PEAKWASH 700 B

70 vehicles per hour *
2 750 mm / 3 000 mm
7 000 mm
6 500 mm (2 x turn of wheels)
10 000 mm
2 500 mm
1 500 mm
7.5 t
16.5 kw
40 m3
approximately 30 l
3 pieces
4 800 l/min.

PEAKWASH 1000 B

90 vehicles per hour *
2 750 mm / 3 000 mm
7 000 mm
9 200 mm (3 x turn of wheels)
10 000 mm
2 500 mm
1 500 mm
9.5 t
22.0 kw
40 m3
approximately 40 l
4 pieces
6 400 l/min.

ASK FOR CUSTOM-MADE SOLUTION

Do you need a special dimension? Dosage of disinfection? Frost resistance
or are you interested in water savings? Every wheel washer for trucks
and heavy machines can be tailored to suit your needs.
